Importance of Transient Stability Studies

Each type of fault affects the system differently, but all can cause sudden deviations in rotor angles, voltages, and currents. If these are not cleared quickly and effectively, they can lead to loss of synchronism and widespread system instability.

The fault duration plays a crucial role: longer fault clearance times lead to greater rotor angle deviation, increasing the risk of losing synchronism. Additionally, the location of the fault matters faults closer to generators tend to have a more severe impact.

Causes of Transient Instability

Aside from faults, several operating conditions and system characteristics can lead to transient instability:

• Delayed fault clearing: A longer fault duration increases angular displacement among machines.
• Sudden generator loss or load drop: Leads to severe power imbalance and rotor acceleration or deceleration.
• Incorrect relay or protection settings: Can cause overtripping or under tripping, both destabilizing.
• Heavy loading of transmission lines: Reduces the system’s transfer capacity and resilience to disturbance.
• Insufficient system inertia, especially in renewable-heavy grids: Reduces the system’s ability to absorb transient shocks.

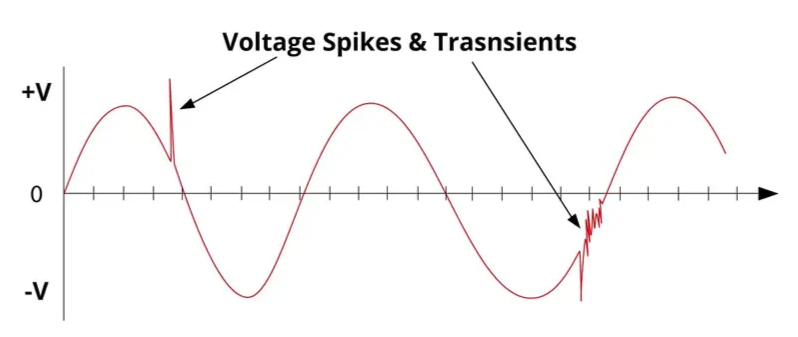

• Breaker operations (opening and closing): Opening breakers to clear faults interrupts current flow, causing voltage transients and switching surges. Closing breakers can cause inrush currents, voltage dips, or phase angle mismatches—each of which can initiate or exacerbate transient instability.

Additional causes may include weak interconnections, poor voltage regulation, lack of fast-acting controls, and poor damping of oscillations. In many blackout investigations, it’s a combination of factors rather than a single fault that leads to instability.

Mechanism of Transient Instability

At the core of transient instability is the behavior of a generator’s spinning components (called rotors) when the system experiences a sudden disturbance, like a fault or a sudden load change. In normal conditions, there is a balance between the mechanical power supplied to the generator (usually from a turbine) and the electrical power it delivers to the grid.

When a disturbance occurs, this balance is broken. The generator rotor may suddenly speed up or slow down. If it speeds up too much, its angle of rotation can drift too far from the rest of the system. This angle separation between generators is what leads to a loss of synchronism.

If synchronism is lost, the generator can no longer operate in harmony with the rest of the grid and may disconnect or trip, worsening the situation.

Engineers often use visual tools like the "equal-area criterion" (as shown in Figure-3) to determine whether the system can remain stable after a disturbance. But because real power systems are very complex and include various automatic controls (like voltage regulators and speed governors), detailed computer simulations are often necessary to make accurate predictions.

Understanding these rotor dynamics is crucial to predicting how the system will behave when things go wrong and what steps need to be taken to keep the grid stable.

Winding Response Across Sub-Transient, Transient, and Steady States

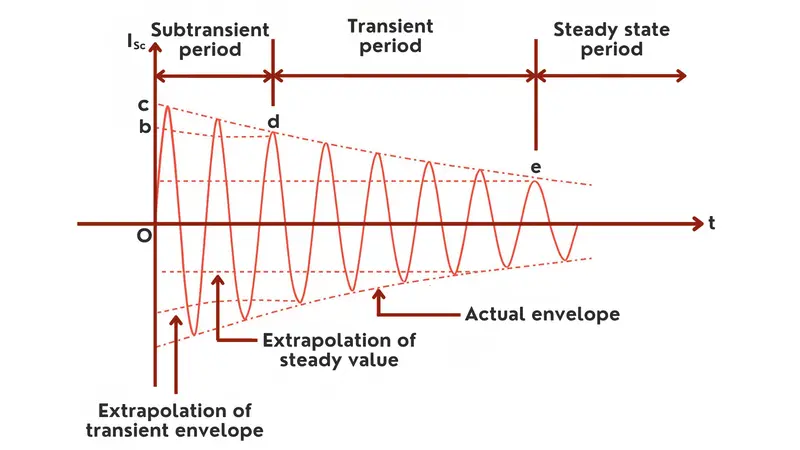

In a synchronous machine, different windings respond at different stages of a transient. Immediately after a disturbance, during the sub-transient state, the damper windings react quickly by generating opposing currents to suppress rapid changes. In the following transient state, the field winding becomes dominant, managing the slower flux changes in the rotor. Finally, in the steady-state condition, all transient effects settle, and the armature winding (on the stator) governs the normal power exchange with the system. Each winding thus contributes at a different time scale to stabilize the generator's response. Refer to the figure below for a visual understanding of these contributions over time.

Time Scales and Models

Transient stability phenomena occur within a few cycles to several seconds following a disturbance. Key time scales include:

• 0–200 ms: Fault inception and protective relay action
• 200–500 ms: Breaker operation and initial system response
• 0.5–5 seconds: Rotor oscillations, power swings, and damping

To study these, engineers use simplified models like the swing equation or detailed time-domain simulations. Simulation software allows engineers to model fault events, switching operations, and system responses across these time scales, providing insight into the system’s ability to withstand disturbances.

Common modeling approaches include:

• Classical model: One-machine infinite bus, using the swing equation.
• Detailed machine models: Include exciters, governors, and stabilizers.
• Network reduction: Used to simplify parts of the system not directly involved in the event.

Emerging technologies like real-time digital simulators and phasor measurement units (PMUs) enhance the modeling and monitoring of transient events, improving both offline analysis and real-time protection.

Outcomes of Transient Stability Analysis

Performing transient stability studies offers several key benefits:

1. Operational Security: Helps utilities plan for worst-case scenarios and improve grid response.
2. Reduced Blackout Risk: Early identification of instability-prone conditions helps prevent cascading failures.
3. Cost Savings: Prevents equipment damage and unplanned outages.
4. Improved Protection Coordination: Ensures protection systems work as intended during major disturbances.
5. Integration of Renewables: Validates that inverter-based sources meet faulty ride-through and grid support requirements.
6. Design Validation: Confirms system performance under dynamic conditions before changes are implemented.

In the age of increasing electrification, stability studies are not just about avoiding failure, they are enablers of innovation. For example, when integrating large-scale solar farms, transient stability assessments ensure those units won’t trip during nearby faults.

These benefits extend to utilities, industrial plants, and critical infrastructure providers by providing actionable insights into system vulnerabilities and helping prioritize investment in grid strengthening measures.

Mitigation Strategies

To enhance transient stability, power engineers employ a range of strategies:

1. Fast Fault Clearing: Upgrade breakers and relays to minimize clearing time.
2. Power System Stabilizers (PSS): Add damping to rotor oscillations.
3. FACTS Devices: Use STATCOMs, SVCs, and TCSCs to regulate voltage and power flow.
4. Inertia Support: Use synchronous condensers or inverter-based synthetic inertia.
5. Remedial Action Schemes (RAS): Automate responses such as load shedding or generation tripping.
6. Generator Control Tuning: Improve governor and exciter performance.

Additional strategies include:

• Grid Reinforcement: Upgrading transmission paths to reduce loading.
• Controlled Islanding: Separating the grid into smaller areas to contain faults.
• Adaptive Protection: Adjusting protection settings based on real-time conditions.

Mitigation is not a one-size-fits-all solution; it requires careful system-specific studies and a layered approach combining hardware upgrades, software tools, and operational procedures.

Conclusion

Transient stability studies are critical for maintaining the reliability and safety of power systems. They help engineers predict how the grid will respond to sudden disturbances and prevent issues like equipment damage or widespread blackouts. As power systems grow more complex, these studies ensure that the grid remains stable under stress, making them an essential part of modern power system planning and operation.
