The Crucial Role of Transformers in Grid Efficiency and Stability

When you turn on a light switch, plug in your phone, or power a factory, you are using the electrical grid, a wonder of modern engineering. Our world relies on this vast network of transmission lines, power plants, and substations. However, the parts that make it work are often ignored. The transformer is one of the most crucial and least appreciated components.

These towering structures and quiet, often unnoticeable boxes are the unsung heroes of our power system. They allow us to deliver electricity from a power plant to your home over long distances. Yet, their role goes beyond just improving efficiency. They are the protectors that keep the grid robust and stable, and they are the first line of defense against catastrophic failures. Using a power system modelling program called ETAP, in this blog we will see how transformers are essential to the grid's stability and efficiency. You'll realize at the end why the common transformer is the foundation of the system that runs our entire world.

How Transformers Work: A Quick Primer

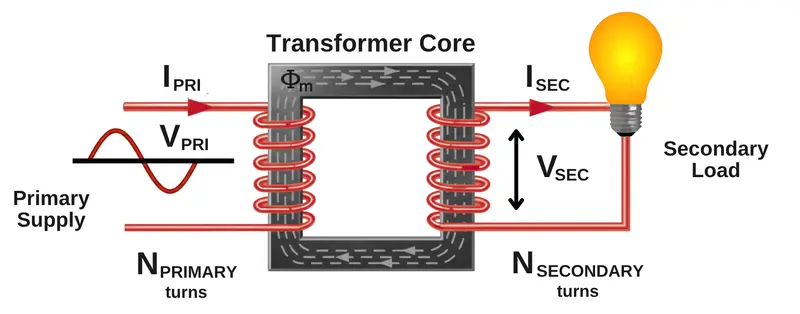

The Principle of Induction: How the Magic Happens

The fundamental physics concept of electromagnetic induction serves as the foundation for a transformer's primary operation. A transformer's primary coil produces a fluctuating magnetic field when alternating current (AC) flows through it. The iron core of the transformer contains this magnetic field. The secondary coil, which is also wrapped around the core, experiences a voltage because of changes in the magnetic field. The requirement that the current should be alternating is crucial. There would be no induced voltage when a steady magnetic field is produced by a constant direct current (DC).

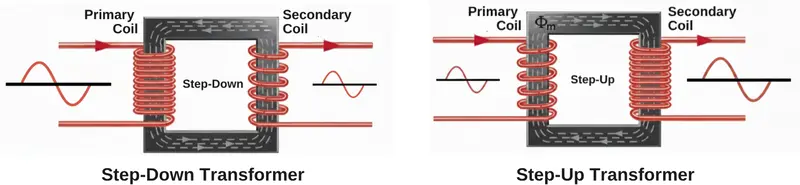

Stepping Up and Stepping Down: The Role of Coils

The transformer's straightforward design is its genius. The turns ratio of the coils determines whether the voltage is stepped up or down. The voltage will be stepped up if the secondary coil has more turns than the primary coil because the induced voltage will be higher. On the other hand, the voltage is stepped down if the secondary coil has fewer turns. Engineers can precisely control voltage levels with this simple but efficient mechanism, which is essential for safe consumption and efficient transmission.

Transformers and Power System Efficiency: Minimizing Energy Loss

The Problem: Power Loss over Long Distances

Every component of a power grid has resistance, and some energy is lost as heat when current passes through it. The biggest threat to long-distance power transmission is this phenomenon, which is called the I²R loss. A significant amount of the electricity produced at a power plant would be wasted before it ever reached a city if there was no way to reduce this loss.

The Solution: High-Voltage Transmission

The transformer turns into an essential hero at this point. The product of voltage (V) and current (I) is power (P).

$P=V\times I$

Either high voltage and low current or low voltage and high current can be used to transmit a fixed amount of power. The current is significantly decreased by raising the voltage to a very high level (hundreds of thousands of volts) using a step-up transformer. Because of the reduced I²R losses caused by this low current, power can move remarkably efficiently over hundreds of kilometers.

A Closer Look: Modeling Efficiency with ETAP

We used ETAP, a power system modelling tool to visualize this idea. In order to transmit the same amount of power over a 100 km line, we compared two scenarios.

First Scenario: Inefficient Low-Voltage Transmission:

We conducted a scenario in which the voltage was stepped up from 13.8kV to 34.5 kV via transformer. The power output before the transmission line was 5.148 MW, and the power after the line was 4.630 MW. This indicates a significant power loss of 0.518 MW over 100 km line during transmission.

Second Scenario: Efficient High-Voltage Transmission:

In this case, the voltage stepped up from 13.8kV to 230 kV using a transformer, The power output before the transmission line was 5.352 MW, and the power after the line was 5.309 MW. This indicates a power loss of only 0.043 MW over 100 km line during transmission. which was 12 times less than the previous scenario. This indicates that we were able to minimize the I²R loss by maintaining a low current and high voltage by utilizing a transformer.

This clear and visual proof of the transformer's crucial function is given by this side-by-side comparison. Since a significant amount produced like we witnessed in first scenario would be lost as heat before it could reach its destination, the massive power plants that power our cities would be useless without transformers.

Beyond Efficiency: Transformer's Impact on Grid Protection and Stability

Impact on Short-Circuit Current

A dangerously high current can result from a grid fault like a short circuit, which can harm equipment and cause widespread outages. Short circuit can either be caused by internal or external factors.  Internal causes include insulation failure, equipment failure, or loose connection within the system. External cause includes events like natural events such as lightning or storms, foreign objects encountering power lines, or human error during maintenance or construction. The internal impedance of a transformer limits the amount of this current by acting as a bottleneck. The transformer's impedance, a measure of its opposition to current flow, effectively isolates the fault and prevents the full force of the utility grid from reaching the faulty point.

Impact on Protection and Coordination

Selective protection is another essential safety feature made possible by transformers. A fault on one side of the transformer is contained and cannot directly impact the other side due to the electrical isolation between the primary and secondary windings. Because of this isolation, engineers can isolate the fault to a particular area of the grid using protective devices like fuses and circuit breakers. By carefully arranging these devices to "coordinate" with one another, the system remains functional even if only the circuit nearest to the fault opens. This keeps a minor malfunction from tripping the entire system, guaranteeing uninterrupted power to areas that are not impacted.

Impact on Arc Flash Hazards

A dangerous phenomenon known as an arc flash happens when a high-amperage current arcs through the atmosphere, producing a burst of intense pressure, light, and heat. Severe burns, hearing loss, and even death may result from these incidents. A transformer directly lowers the quantity of energy available to fuel an arc flash by restricting the fault current. By significantly reducing the incident energy, this reduces the chance of a catastrophic event and makes the system safer for workers who handle or are close to the equipment.

A Deeper Dive: Modeling Stability and Protection with ETAP

We can observe the transformer's protective function in operation by using the ETAP model. We contrasted two possibilities for a system malfunction:

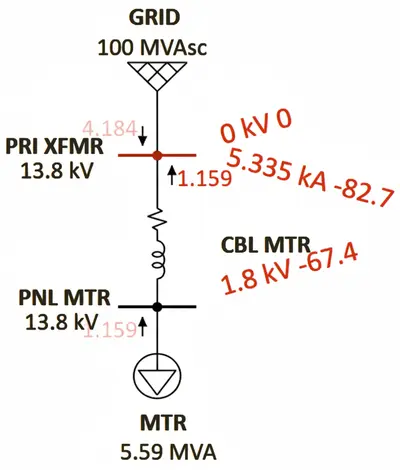

First Scenario: High-Current Fault without Transformer the utility was able to provide 127.5 MVA of total short-circuit power without the need for a transformer. The voltage at the fault site totally collapsed, and the fault current was high. In order to precisely gauge the severity of the fault and the protective effect of the transformer, power engineers consider the total short-circuit power (MVA) rather than just comparing fault currents at various voltage levels.

At 13.8 kV, the short-circuit MVA is

$\sqrt{3}\times 13.8\text{ kV}\times 5.335\text{ kA}=127.5\text{ MVA}$

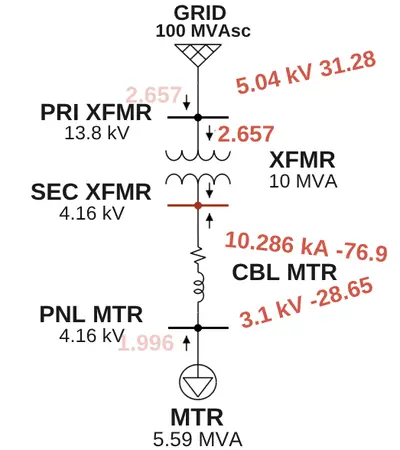

Scenario 2: Contained Fault with a Transformer added to the same system, its impedance limited the total fault short circuit apparent power to 74.2 MVA, a significant reduction of over 40%. The fault current was contained, and the voltage remained much more stable throughout the rest of the grid.

At 4.16 kV, the short-circuit MVA is

$\sqrt{3}\times 4.16\text{ kV}\times 10.286\text{ kA}=74.2\text{ MVA}$

This side-by-side comparison makes it abundantly evident that the transformer's impedance (%Z),  plays a critical role in preserving grid stability and shielding the system from cascading failures.

The Future of Transformers

Smart Transformers and a Smarter Grid

Today's transformers are not the same as those of the past. The grid's essential components must change along with them to satisfy the demands of a more sustainable and electrified future. Transformers of the next generation are "smart," with digital intelligence and communication capabilities that are turning them from passive parts into vital, active components of an intelligent power network.

Real-Time Monitoring and Predictive Maintenance

Conventional transformers are passive devices that frequently require reactive maintenance. On the other hand, a variety of sensors on smart transformers provide a constant flow of information about their operational health. They can monitor important variables like vibration levels, partial discharge activity, and winding and oil temperatures. A central control center receives this data, where machine learning algorithms and advanced analytics can identify problems and anticipate possible failures before they happen. This change from reactive to predictive maintenance is revolutionary because it increases grid reliability, decreases downtime, and greatly increases the lifespan of these priceless assets.

Integration with Renewable Energy and Microgrids

Due to their unpredictable and inconsistent nature, renewable energy sources like wind and solar are becoming increasingly popular, which poses new grid stability challenges. Smart transformers are in a unique position to deal with this issue. They aid in managing the fluctuations that come with renewable energy sources by communicating with other grid components and dynamically adjusting their settings. In addition, they are an essential component of microgrids. By operating independently or in tandem with the main grid, these small-scale power grids can provide vital resilience to vital infrastructure, such as data centers and hospitals, in the event of an outage.

Enhanced Communication and Dynamic Response

One important component of the "Internet of Energy" is smart transformers. They have sophisticated communication modules that enable two-way data transfer between a central control system and other grid devices. They can carry out a number of new tasks because of their connectivity. For instance, in the case of a fault or during periods of high load, they can automatically modify their voltage output to preserve stability. In order to build a genuinely intelligent and resilient power grid that can swiftly adjust to shifting circumstances and bounce back from disruptions more quickly, this proactive, dynamic response is crucial.

Studies Involving Transformers and AllumiaX Role

From the towering substations that power our cities to the small, green boxes in our neighborhoods, transformers are everywhere, silently performing their vital tasks. We've explored how they are the keys to efficient long-distance power transmission and the first line of defense against catastrophic failures. But the principles that make them so effective from maintaining voltage stability to containing dangerous faults require more than just proper installation. They demand precise, expert analysis.

At AllumiaX, we know that a truly resilient system should be meticulously studied and optimized. Our core services directly address the very challenges that transformers are designed to solve. We ensure peak efficiency through Load Flow analysis, safeguard personnel and assets with comprehensive Short Circuit and Arc Flash studies and guarantee seamless operation through Protection & Coordination. By performing Transient Stability studies, we can model and reinforce your grid against sudden disturbances, while our Snubber Circuit design expertise protects your most sensitive equipment.

The transformer is the backbone of the system, but our expert power system studies are what make that backbone strong. Partner with AllumiaX to ensure your infrastructure operates with the highest level of reliability, safety, and performance, securing the uninterrupted power that our modern world depends on.
